Gravel



GS1 RIVAL XPLR

Starting at €4,499

GS1 FORCE XPLR

Starting at €5,999

GS1 GRX Di2

Starting at €6,499

GS1 RED XPLR

Starting at €7,999

Designed for the modern gravel rider who prioritizes stability at speed, the all-new Ventum GS1 combines progressive off-road handling, improved tire clearance, and snappy acceleration.
RIDE QUICK.
THE ALL-NEW GS1 FEATURES
BIGGER TIRE CLEARANCE | F: 700x56c // R: 700x50c
VENTUM RACE GEOMETRY
NEW AERO HEAD TUBE
T47 BOTTOM BRACKET
1X OR 2X DRIVETRAIN COMPATIBLITY
150g LIGHTER
SRAM UDH & DIRECT MOUNT DERAILLEUR HANGER
RECESSED HEADTUBE, INTERNAL CABLE ROUTING

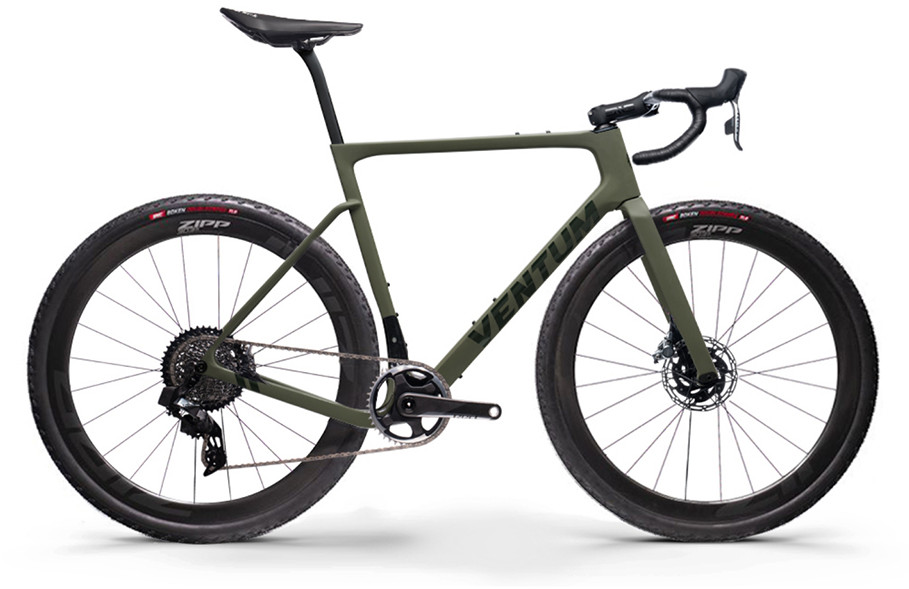

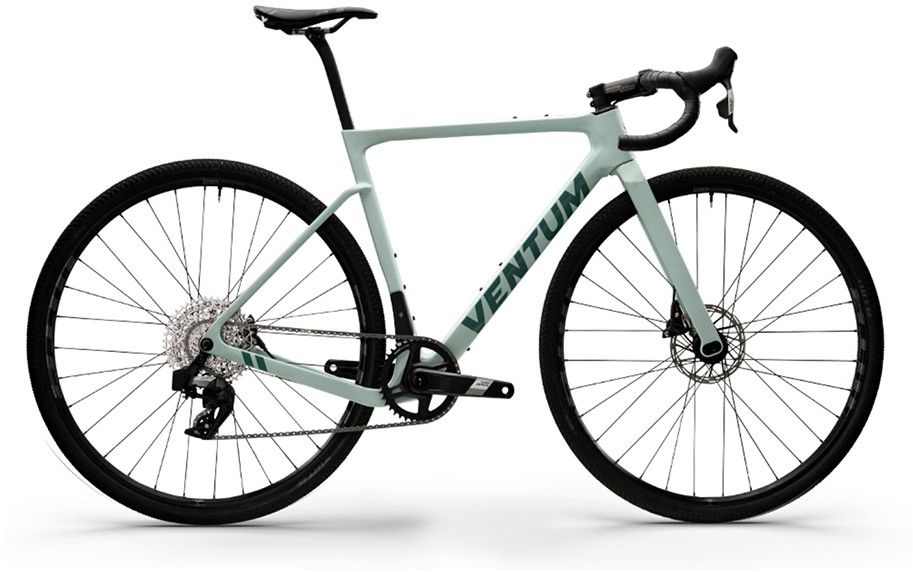

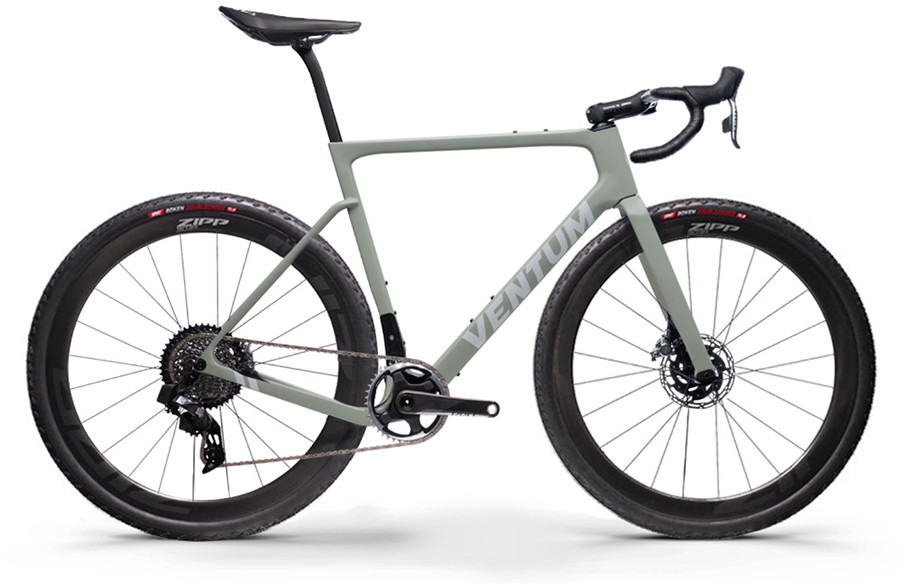

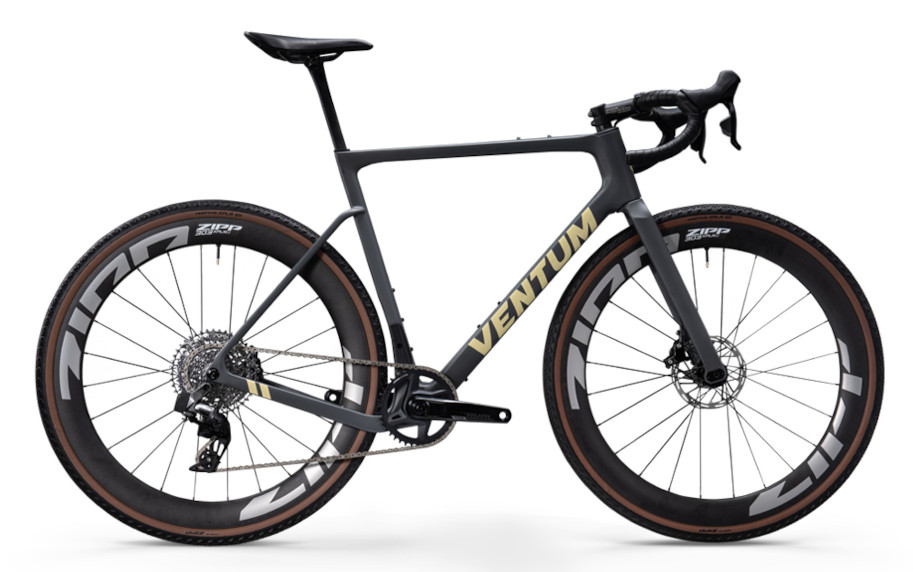

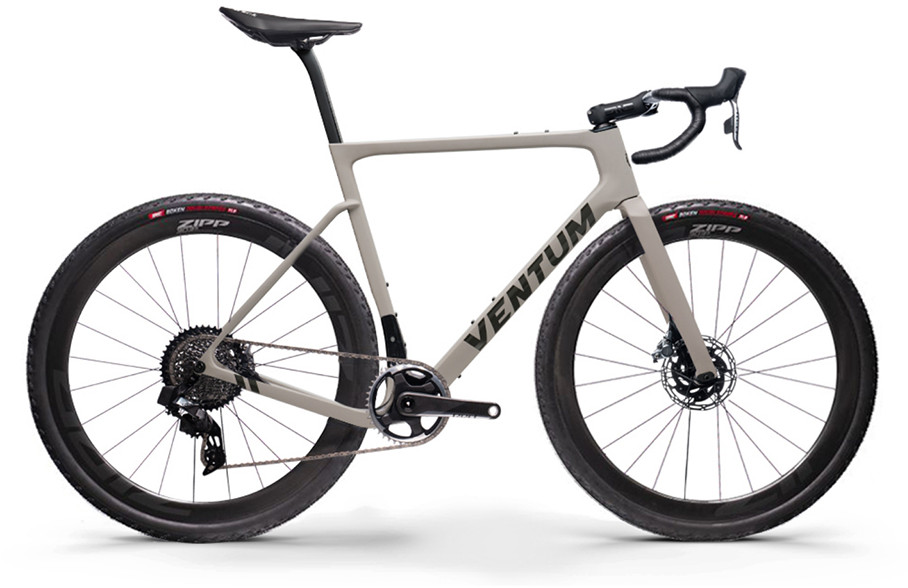

4 COLORWAYS.

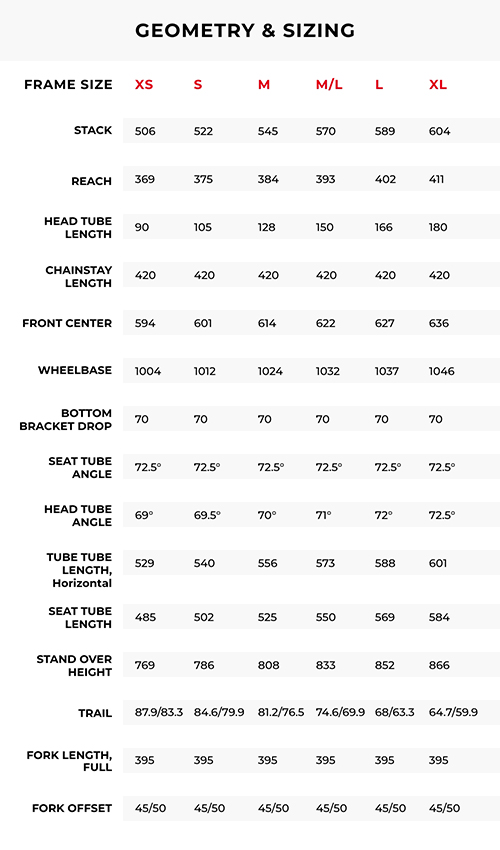

GEOMETRY & SIZING

FRAME SIZE XS S M M/L L XL
(A) STACK 506 522 545 570 589 604
(B) REACH 369 375 384 393 402 411
(C) HEAD TUBE LENGTH 90 105 128 150 166 180
(D) CHAINSTAY LENGTH 420 420 420 420 420 420
(E) FRONT CENTER 594 601 614 622 627 636
(F) WHEELBASE 1004 1012 1024 1032 1037 1046
(G) BOTTOM BRACKET DROP 70 70 70 70 70 70
(H) SEAT TUBE ANGLE 74 74 73.5 73.5 73 73
(I) HEAD TUBE ANGLE 69 69.5 70 71 72 72.5
(J) TOP TUBE LENGTH, Horizontal 514 525 545 562 582 596
(K) SEAT TUBE LENGTH 485 502 525 550 569 584
(L) STAND OVER HEIGHT 778 795 817 841 860 874 with a 700x50
(M) TRAIL 86 83 79 72 66 62 with a 700x50
(N) FORK LENGTH, FULL 395 395 395 395 395 395
(O) FORK OFFSET (Not Shown) 50 50 50 50 50 50

SUPPORT


We Stand Behind Our Products

Ventum stands behind the quality of our bikes, engineering, and all of our products. Each item is meticulously designed in-house by our team of passionate riders. Our goal is to elevate your experience and to deliver products that can withstand all normal rugged wear and tear that comes with competing in a triathlon, running a crit series, or enjoying a long gravel road to nowhere.

If you are not satisfied with your order, please contact our customer support team.

Sizing

&nbsp
&nbsp
&nbsp

Ordering, Shipping, Warranty, & Returns

&nbsp

It can take up to 30 days to process a return or refund.

&nbsp

Bikes shipped outside of the continental US are handled by our regional partners. The assembly required upon final delivery can vary, but you should expect to install the wheels, seatpost, and the stem onto the steerer tube.

&nbsp

https://ventumracing.com/warranty/

General Product Information

&nbsp

Ventum seldom publishes complete build weights as several factors can cause weight to vary. Please reach out to support@ventumracing.com with further questions pertaining to weight figures regarding bike builds.

&nbsp

Current Model GS1 - Tire clearance to 700x56c in the front and 700x50c in the rear.

Current Model NS1 - Tires measuring up to 35mm in width (700x35C)

Current Model Tempus - Tires measuring up to 30mm in width (700x30C)

Legacy GS1 (pre-2025) - Tires measuring up to 48mm in width (700x48C)*

Ventum One Disc - 28mm max (700x28C)

&nbsp

The NS1 and Tempus are typically equipped with 700x28C or 700x30C tires. The specific tire is subject to change depending on availability. Reach out to support@ventumracing.com for more information.

The GS1 will be equipped with tubeless gravel tires, typically on size 700x48C

&nbsp

Ventum does not offer custom paint options, but we do offer an array of color options for each bike type.
